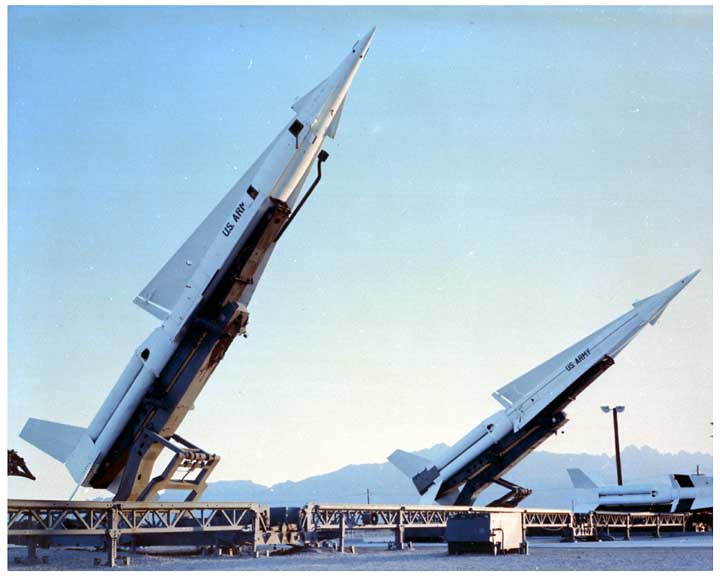

Two Hercules missiles on launchers. One is erect.


Development of the Nike Hercules took place in the early 1950s and deployment commenced in 1958. A total of 145 missile batteries were deployed. Most of these were converted Nike Ajax units. Deactivation of Nike Hercules batteries in the United States commenced in the early 1970s and was completed by 1975, with the exception of batteries remaining in Alaska and Florida. These batteries were deactivated in the late 1970s. Foreign countries, mainly NATO allies, deployed this system as well.


Length   41 ft. with booster
Diameter   31.5 inches
Wingspan   6 ft. 2 in.
Weight   10,710 pounds with booster
Booster Fuel   Solid propellant
Sustainer Motor   Solid propellant
Range   Over 75 miles
Speed   Mach 3.65 (2707 mph)
Maximum Altitude   100,000 ft.*
Guidance   Command guidance from ground installations

*Many web sites contain inaccurate information concerning the maximum intercept altitude for the Nike Hercules. They list the maximum intercept altitude as being 150,000 feet. This is incorrect. The maximum intercept altitude of the Nike Hercules is 100,000 feet. Please refer to page 13 of TM 9-1400-250-10/2.


High Explosive:

Cutaway diagram of T45 fragmentation warhead T45 - 625 pound fragmentation


Initial deployment was with the W-7 warhead in two variants; X1 and X2 with yields of 2 - 40 Kt. The W-7 was soon to be replaced with the W-31.

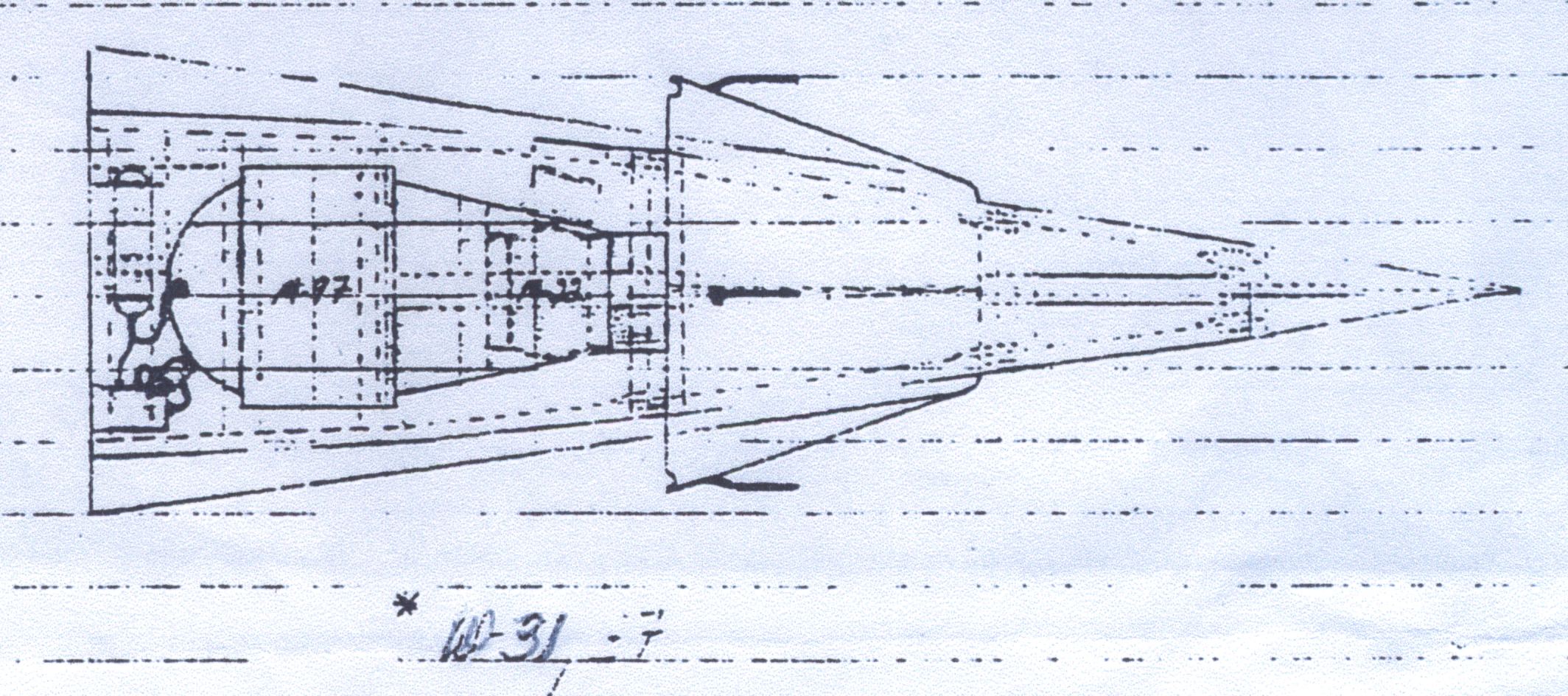

schematic of forward section of Nike Hercules showing warhead placement

W31 deployed in 3 yields:2kt (M-22), 20kt. (M-97), and 40kt (M-23).

10 kiloton nuclear air burst 10 KT air burst with a Hercules

W31 was a boosted fission weapon


The simplest way to utilize fusion is to put a mixture of deuterium and tritium inside the hollow core of an implosion style plutonium pit (which usually requires an external neutron generator mounted outside of it rather than the initiator in the core as in the earliest weapons). When the imploding fission chain reaction brings the fusion fuel to a sufficient pressure, a deuterium-tritium fusion reaction occurs and releases a large number of energetic neutrons into the surrounding fissile material. This increases the rate of burn of the fissile material and so more is consumed before the pit disintegrates. The efficiency (and therefore yield) of a pure fission bomb can be doubled (from about 20% to about 40% in an efficient design) through the use of a fusion boosted core, with very little increase in the size and weight of the device. The amount of energy released through fusion is only around 1% of the energy from fission, so the fusion chiefly increases the fission efficiency by providing a burst of additional neutrons.

Boosting is typically done with a D/T mixture in gas form which is pumped into the core during the arming sequence from an exterior reservoir. Tritium has a short half life (12.3 years), is very expensive and is very chemically reactive with uranium and plutonium. Having the tritium reservoir outside of the bomb allows easy replenishment and removal of waste Helium-3 without having to take the bomb core apart. (Theoretically, there are ways a solid hydride or a D/T liquid could be used instead, but the use of gas is almost universal.)

Fusion boosting provides two strategic benefits. The first is that it obviously allows weapons to be made much smaller, lighter, and use less fissile material for a given yield, making them cheaper to build and deliver. The second benefit is that it can be used to render weapons immune to radiation interference (RI). It was discovered in the mid-1950s that plutonium pits would be particularly susceptible to partial pre-detonation if exposed to the intense radiation of a nearby nuclear explosion (electronics might also be damaged, but this was a separate issue). RI was a particular problem before effective early warning radar systems because a first strike attack might make retaliatory weapons useless. Boosting can reduce the amount of plutonium needed in a weapon to below the quantity which would be vulnerable to this effect.

While this technique, sometimes known as "gas boosting," uses fusion — the reaction associated with the so-called “hydrogen bomb” — it is still seen as simply boosting a "fission" bomb. In fact, fusion boosting is very common and used in most modern weapons, including the fission primaries in most thermonuclear weapons.


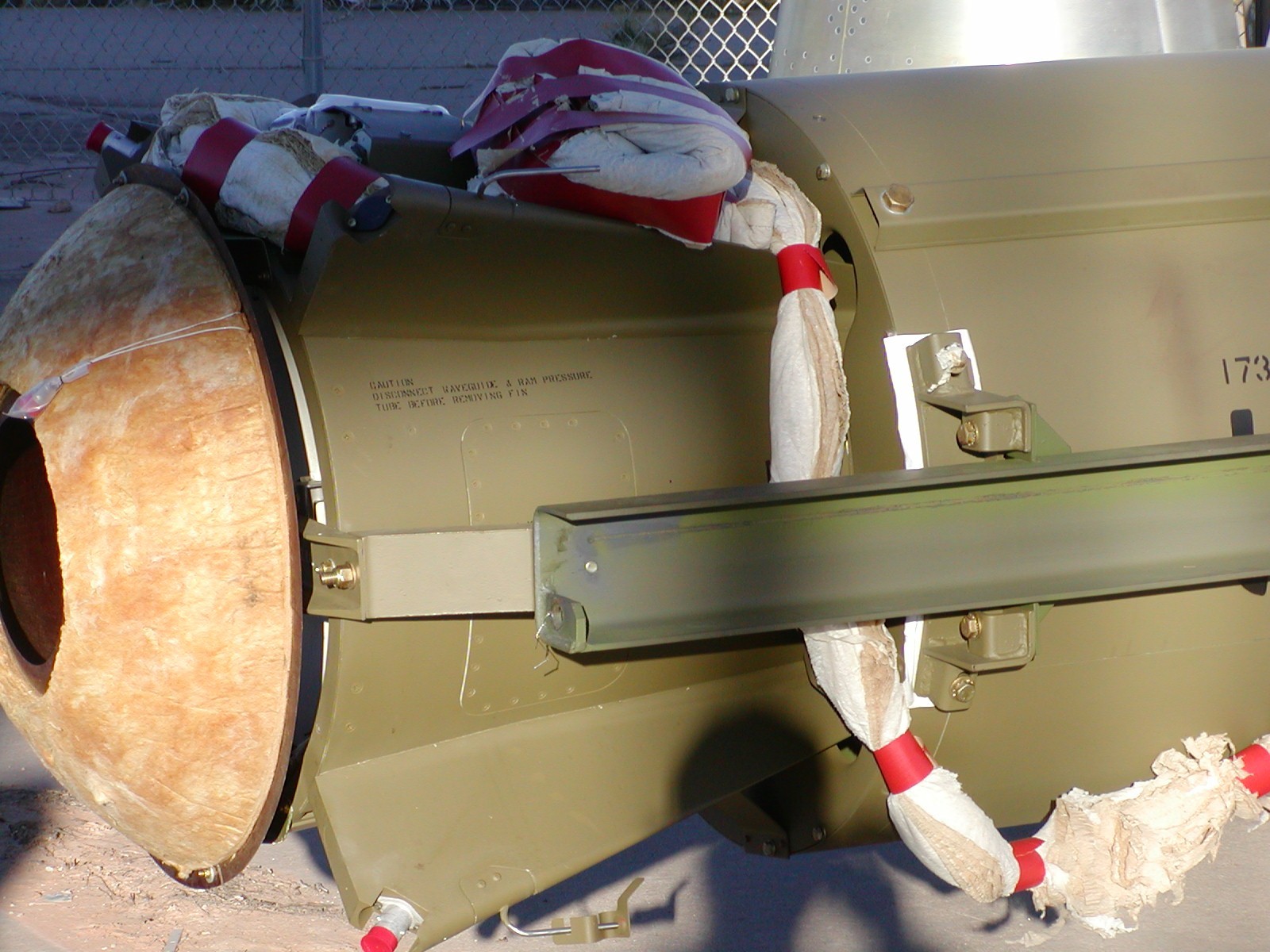

The missile was constructed by Douglas Aircraft in California.
The boosters were constructed by the Hercules Powder Company Radford Arsenal, Virginia.
The sustainer motor was constructed by Thiokol Chemical Corporation.
The guidance system was manufactured by Western Electric.


2 Hercules on launchers at 45 degreesFired Hercules leaving launcherHercules launcher areaartists concept of Hercules aproaching target aircraft

14 Feb 2013 The missiles at one of bases we had in Germany. Sorry about the people in the way and the quality. These were slides that were in storage for 30 plus years. John
Herc head-on photo at base in GermanyHorizontal Herc at base in GermanyHerc raising at base in GermanyHerc raising further at base in GermanyHerc in launch position at base in GermanyRadar at base in GermanyLopar at base in Germany
